Traxxas 1/10 Scale Ford Fiesta ST Rally
- Officially licensed Ford Fiesta ST body
- Full-time 4WD
- TQ™ 2.4GHz radio system
- Waterproof electronics for all-weather, all-season RC excitement
- Titan® 12-turn 550 modified motor
- Powerful XL-5 waterproof electronic speed control
- Built brushless ready for easy upgrade to Velineon® power
- Low-CG fiber-composite monocoque chassis with high approach angle front bumper
- Race-proven sealed differentials
- Scale all-terrain front and rear tires offer superior on- and off-road traction
Feature:
- Traxxas TQ™ 2.4GHz radio system
- Waterproof electronics permit driving in water, mud and snow
- Traxxas #6519 3-channel micro receiver
- Waterproof, O-ring sealed receiver box
- High-torque waterproof Traxxas #2056 steering servo
- Powerful Titan® 12T 550 modified motor with internal cooling fan
- High-performance waterproof XL-5™ electronic speed control
- Innovative waterproof design
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- 12-Turn motor limit for 550 size motors
- 15-Turn motor limit for 540 size motors
- Integrated on/off switch
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
- High-efficiency MOSFET transistors
- Click here for more info
- Single-screw motor access makes gear-mesh adjustments fast and easy and the motor can be removed in just seconds

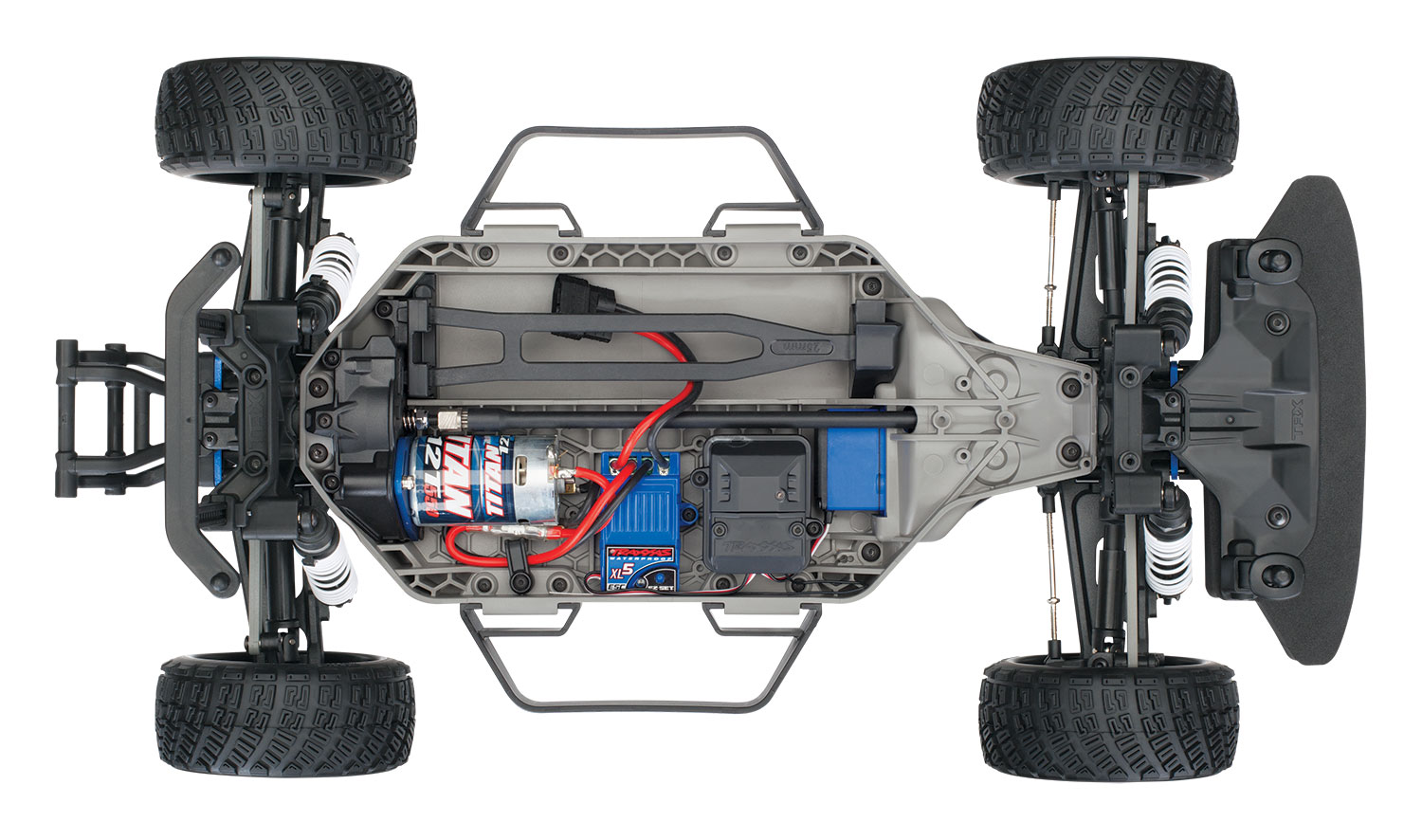

- Modular simplicity, fiber-composite monocoque chassis
- Speed control and receiver are securely fastened to chassis
- Built brushless ready to make upgrading to Velineon power simple
- Sealed, silicone-filled differentials
- High-stall gear clutch

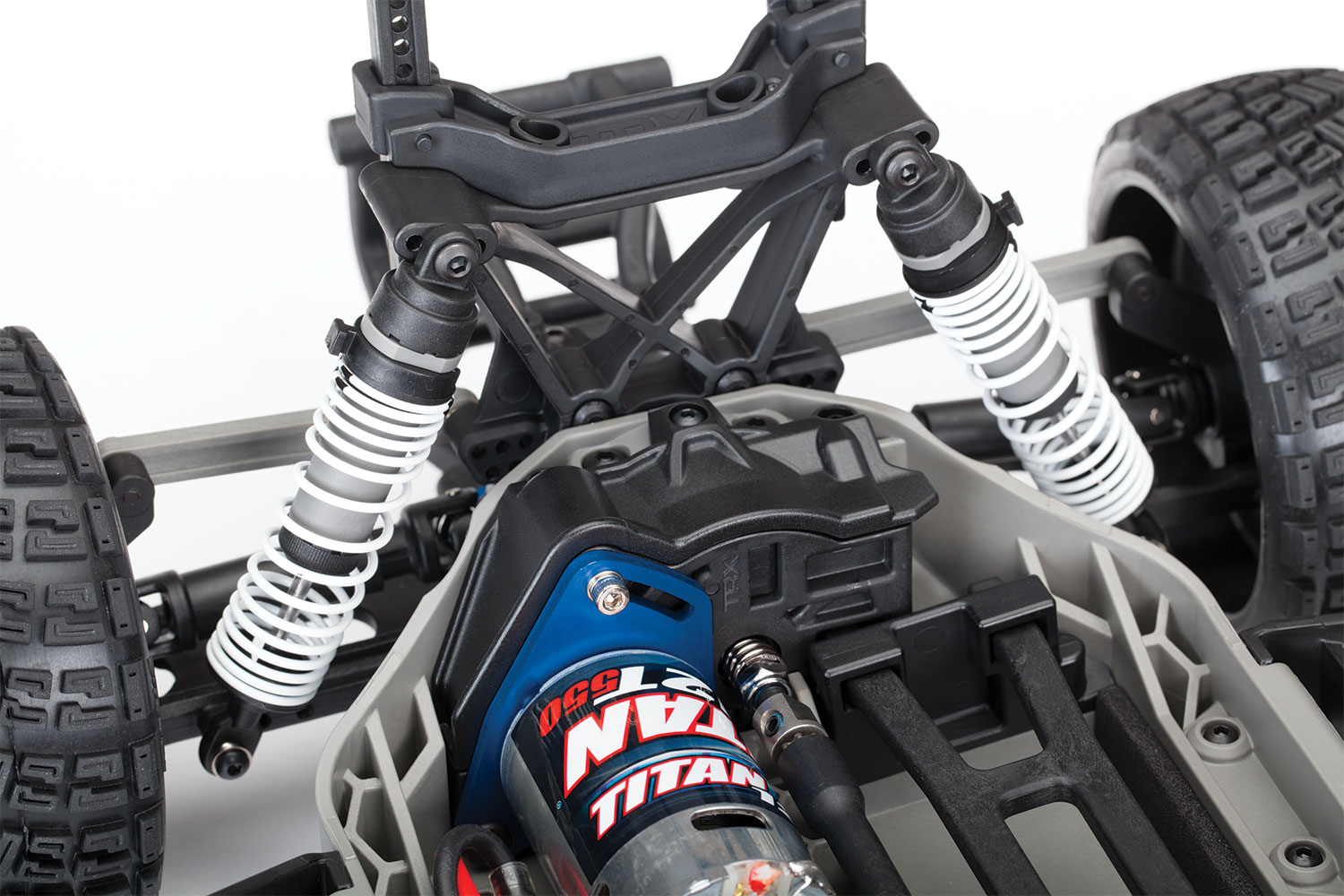

- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- White powder coated shock springs feature a responsive spring rate
- Telescoping universal-joint driveshafts
- Rubber-sealed ball bearings
- Pre-glued all-terrain tires with high-performance foam inserts
- ProGraphix® painted race replica body
- Full line of genuine Traxxas accessories available
- Rally is backed by unparalleled Traxxas support and parts availability
Specification
Model information
RALLY (#74054-4) SPECS
| Length | 21.0 inches (535 mm) |
| Front/Rear Track | 1.0 inches (281 mm),11.0 inches (281 mm) |
| Center Ground Clearance | 0..82 inches (21 mm) |
| Weight | 97.6 ounces (2.77 kg) |
| Height | 8.1 inches (206 mm) |
| Wheelbase | 12.8 inches (324 mm) |
| Shock Length | Long (front), XXLong (rear) |
| Tires | Traxxas 2.2" Pre-Glued with Foam Inserts |
| Tire diameter | 4.02 inches (102 mm) (front and rear) |
| Wheels (front/rear) | 2.2" 12-Spoke Rally Replica |
| Wheel Diameter | 2.2 inches (56 mm) Outer 3.0 inches (76 mm) Inner |
| Speed control type | XL-5™ Electronic Speed Control |
| Motor (electric) | Titan® 12T 550 (12-Turn) |
| OVerall Drive ratio | 19.69 (stock, out-of-box) |
| differential Type | Hardened Steel Bevel, Sealed, Limited Slip |
| Gear Pitch | 48 |
| Chassis Stucture/Material | Molded Tub / Nylon Composite |
| Drive system | Shaft-Driven, Direct Drive 4WD |
| Steering | Dual-Bellcrank with Integrated Servo Saver |
| Radio system | TQ™ 2.4GHz Radio with #6519 3-Channel Micro |
| Body | Licensed Ford Fiesta ST Rally Body |
| Skill Level | 1 |
| Included Accessories | Precision Tool Set |
| Required items | Battery, charger, 4 "AA" Batteries (for transmitter) |
XL-5 (WATERPROOF) ESC SPECIFICATIONS
| Input Voltage | 4-7 Cells (4.8 to 8.4 Volts DC) |
| Case Size | 31 mm x 55 mm x 15.5 mm |
| Weight | 2.44 Ounce |
| Motor Limit | 15-turns** (540 Size) 12-turns** (550 Size) |
| On resistance forward | 0.007 Ohms |
| On Resistance reverse | 0.014 Ohms |
| BEC Voltage | 6.0 VDC |
| BEC CCurrent | 1A |
| Power Wire | 14 Gauge / 5" |
| Input Harness Wire | 26 Gauge / 9" |
| PWM Frequency | 1600 Hz |
| Low voltage Detection (LVD) | 2-Stage indicators, switchable (on or off) |
| Thermal Protection | Thermal shutdown |
