Castle Mamba X Sct , Sensored 25.2V WP Esc And 1410-3800Kv

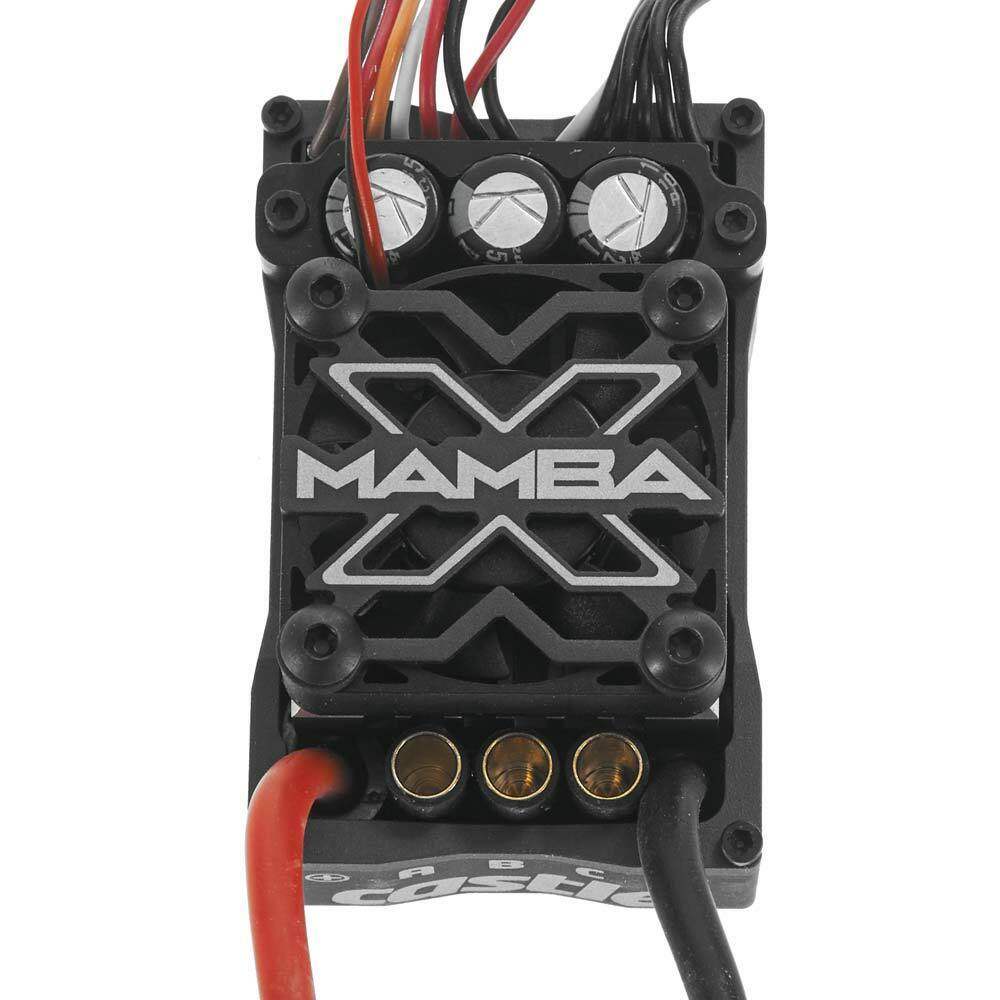

Castle Creations is proud to announce our new flagship surface product, the MAMBA X EXTREME 1:10 SCALE WATERPROOF ESC. We at Castle wanted to address three main concepts while designing a new ESC for the modern day RC enthusiast; VERSATILITY, RELIABILITY, and PERFORMANCE. These are the pillars of the Mamba X design and the driving forces behind the feature-packed controller.
The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*.The Mamba X with 1410-3800Kv sensored motor is perfect for short course trucks running on 2s LiPo and weighing up to 6.5 lbs; it can be run on a 3s LiPo with very conservative gearing and keep a close eye on temperatures. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.
FEATURES:
|
|
MAMBA X ESC 1410-3800 COMBO COMES WITH:
|
|
Specification
Model information
Product Specification
ESC Technical Specs :
| Input Voltage Range: | MIN: 2S LiPo MAX: 6S LiPo (25.2V) (3s maximum with included 1410 - 3800kv motor) |
| BEC Specifications: | Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V |
| Operating Environment: | Waterproof* design allows for use in nearly any environment. |
| Brake: | Proportional |
| Reversible: | Yes, but may be disabled for racing. |
| On/Off Switch: | Yes |
| Cooling Fan: | Yes, factory equipped (30mm), fully removable** (see Product Use Statements below) |
| Size: | Length: 2.14" (54.4mm) Width: 1.39" (35.2mm) Height: 1.18" (30.0mm) |
| Weight (with wires): | 3.56 oz. (101g) |
| Max. Recommended Vehicle Weight: | Up to 6.5lbs with included 1410 - 3800kv sensored motor. |
Motor Technical Specs
| Input Voltage Range: | 2-3S LiPo |
| kv | 3800 |
| Max RPM | 100,000 |
| Size | Length: 52.7mm Diameter: 36mm |
| Weight (w/wires): | 237g / 8.4oz |
| shaft size | Length: 15.5mm Diameter: 1/8" (3.17mm) |
| Connectors: | 4mm male Castle Bullet Connectors |
| Recommended ESC(s): | Combo includes Mamba X ESC. |
| Max. Recommended Vehicle Weight: | See application guidelines |
| cooling Fan | Optional . Coming soon |
