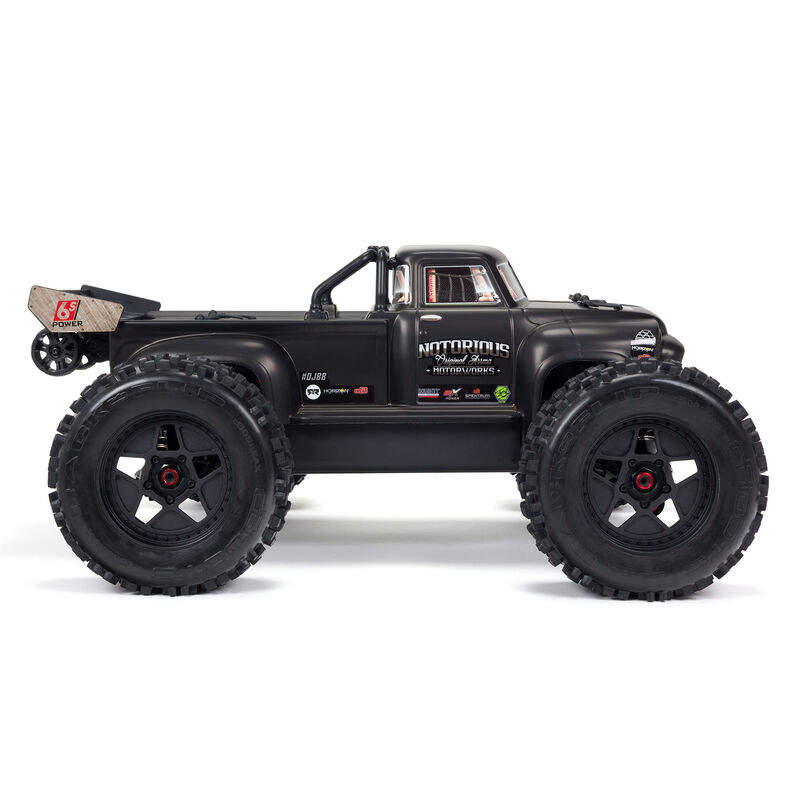

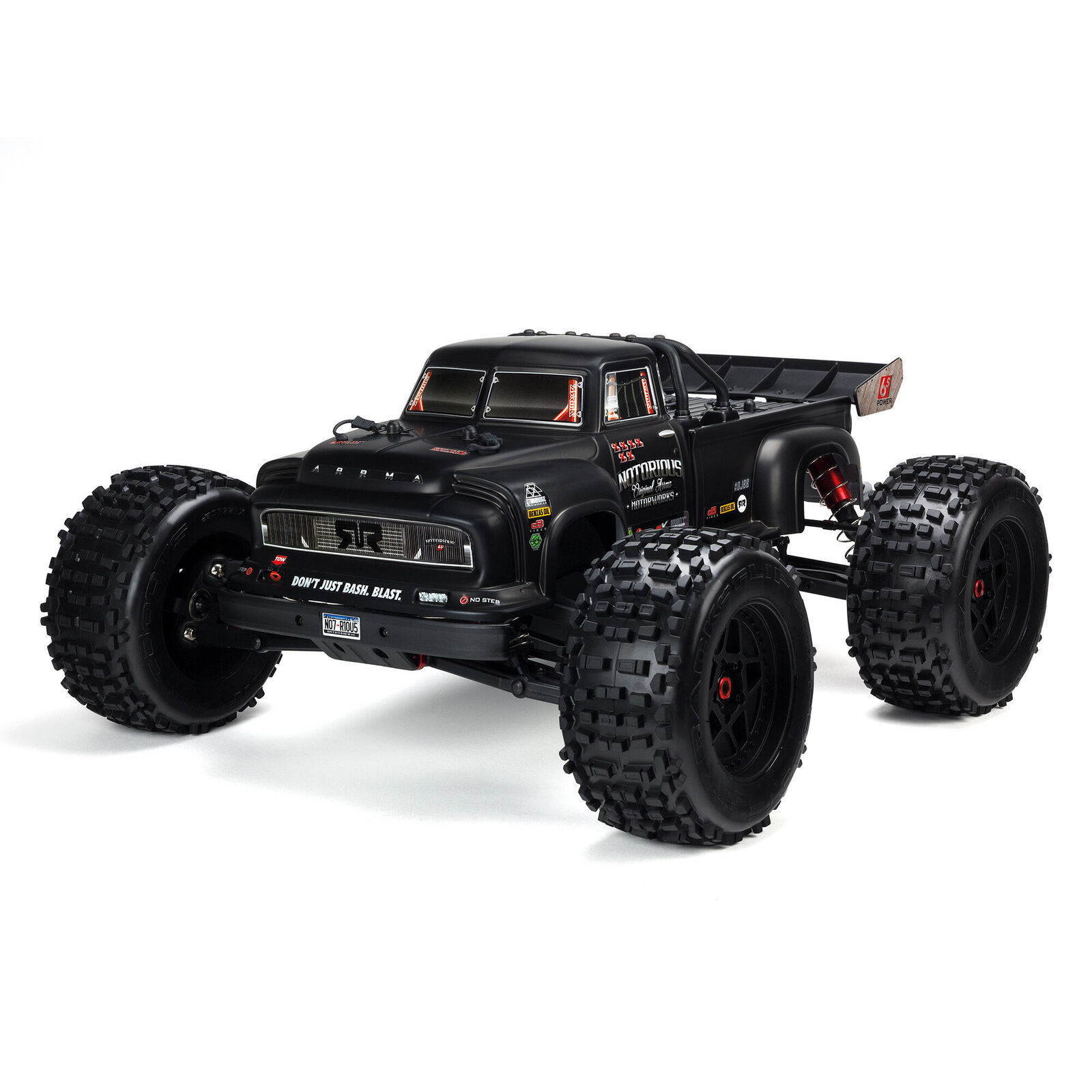

Arrma 1/8 Notorious 6S V5 4WD BLX Stunt RC Truck with Spektrum Firma RTR

INTRODUCTION

The 1/8 scale NOTORIOUS™ 6S BLX Stunt Truck 4WD unleashes wheelie-popping, back-flipping, outrageous action with one-of-a-kind style. Its custom 1950s body offers more than streamlined good looks and a matte black or matte blue factory finish. Its exclusive ARRMA® "Real Steel" effect adds eye-catching realism that only improves with severe bashing. The more scratched and scarred your Stunt Truck becomes, the more authentic and amazing it looks.

FEATURES

Ready-to-run

Spektrum™ SLT3™ 2.4GHz 3-Channel Radio

Spektrum™ SR315 Dual Protocol 3-Channel Receiver

Spektrum™ S652 Digital Servo

Spektrum™ Firma™ 150A Smart ESC

Spektrum™ Firma™ 4074 2050Kv Brushless Motor

Stronger chassis design

EXB compatible front brace

Heavy-duty arms front and rear

Updated Rear shock tower geometry

Large volume waterproof* receiver box

Anodized aluminum chassis

Strong composite chassis side pods

Center body support and brace for maximum durability

Internal body protection roll bar

High downforce wing

Wheelie bar

Oil-filled adjustable shocks

Black-anodized aluminum front and rear shock towers

Durable steel driveshafts throughout

Heavy-duty drivetrain

All-metal diff outdrives and gearbox internals

Never-loose red aluminum servo saver

Never-pop ball ends

5-Bolt center diff removal

Easy-access sliding motor mount for quick motor removal

Hub nut O-rings

Super-durable wheel hubs for increased strength

Tough stunt truck wheels

Multi-terrain dBoots® BACKFLIP™ tires

"Real Steel" effect body for enhanced realism

IC5® connectors (EC5™ compatible)

2-year limited warranty (see manual for details)

OVERVIEW

From its heavy-duty front bumper through the short wheelbase chassis to the wheelie bar in back, the NOTORIOUS™ 6S BLX 4WD is engineered to make you a stunt superstar. Its stiff roll cage and underbody will take all kinds of punishment and come back for more. The NOTORIOUS™ 6S BLX 4WD can do it all: long, tall wheelies…tight, fast donuts…standing and aerial backflips…high leaps into the air…and more.

For the power to perform that kind of stunt action, ARRMA® now equips the NOTORIOUS™ 6S BLX 4WD with a potent, 6S-capable brushless system featuring the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo — which is 32% stronger and 5% faster than the previous version's ADS-15M servo. Thanks to waterproof electronics, bashing is a "go" even through mud and snow. Just add your favorite 4S or 6S LiPo battery.

The ready-to-run Stunt Truck now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

With adjustable 16mm oil-filled shocks on aluminum towers soaking up bumps, the NOTORIOUS™ 6S BLX 4WD Stunt Truck blasts over dirt, asphalt, and grass — over all terrain, in all conditions. Its tough stunt truck wheels come outfitted with multi-terrain dBoots® BACKFLIP™ tires that provide all the traction you'll need to flip, grip, wheelie and spin. A high downforce wing helps keep the vehicle grounded. Everything about the NOTORIOUS™ 6S BLX 4WD contributes to confident control and responsive handling at thrilling high speeds.

For the toughness needed to support extreme stunts, ARRMA® uses a strengthened anodized aluminum chassis as the foundation. A center body support and aluminum center brace plus composite chassis side pods add more durability. All-metal diff outdrives and gearbox internals plus durable steel driveshafts provide a reliable, heavy-duty drivetrain that holds up to extreme stunts and high-speed bashing. A "never loose" aluminum steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.

EXTREME STUNTS

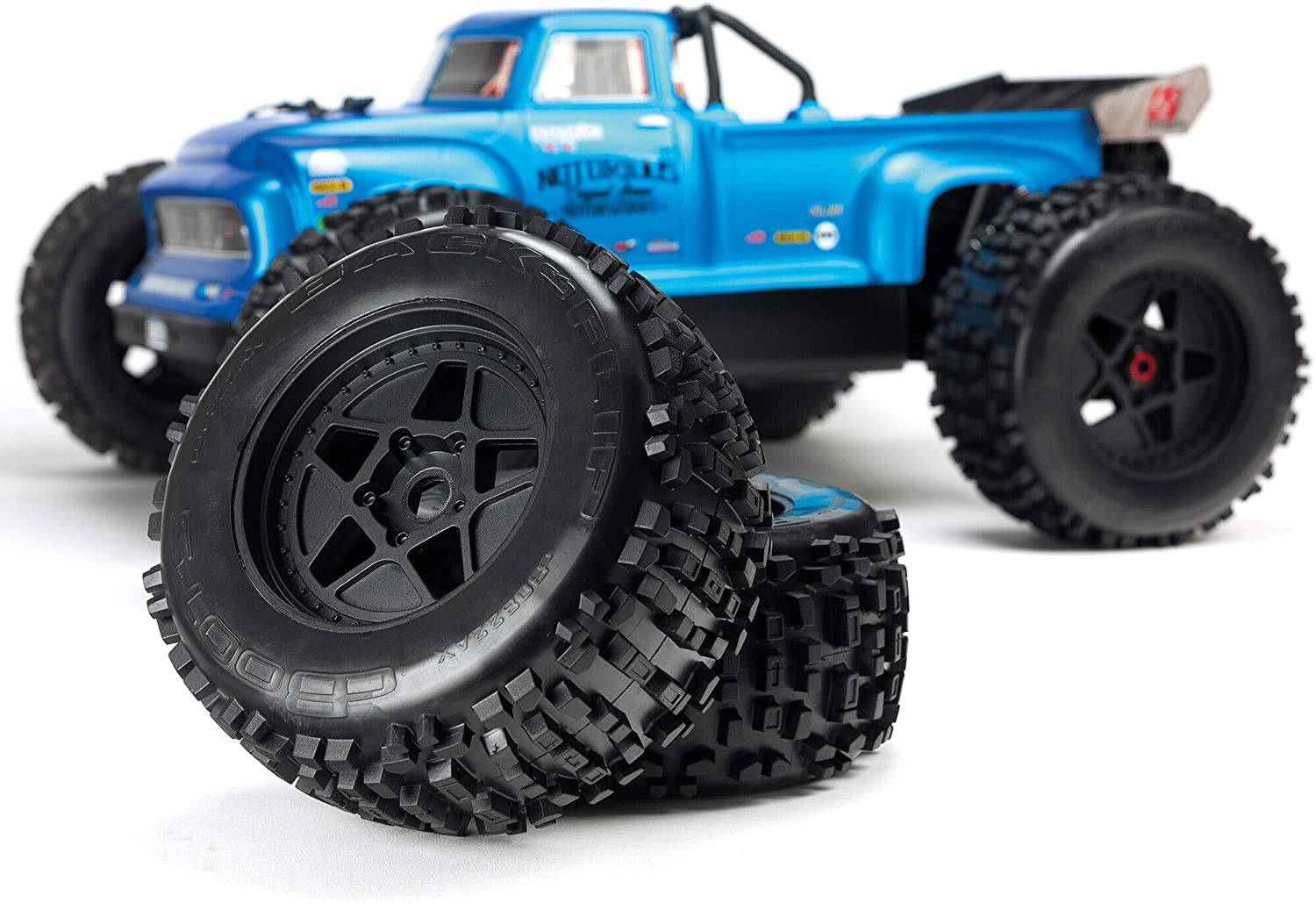

Tough stunt truck wheels and multi-terrain DBoots® Back-Flip tires for flipping, spinning and doing wheelies in all conditions

TOWER TO TOWER BRACE

The aluminum center brace maximizes chassis durability

INNER BODY SUPPORT

Ergonomic and stable design for long bashing sessions

SLIP AND SLIDE

Sliding motor mount for easy meshing and removal, and easy-access 5-bolt center diff

TIGHT & TRUE

New servo saver design that will never loosen, for maximum servo protection.

CAPTIVATING

Captured steering ball ends that will never pop off

SIGNED, SEALED, & DELIVERED

New, updated hubs and hub nut o-rings that will never come loose

ANODIZED ALUMINUM SHOCKS

Anodized aluminum shock absorbers feature adjustable collars and shock cap protectors

BLX185 ESC

• Waterproof and dustproof design *
• 150A, 6S LiPo ready (3S, 4S and 6S LiPo compatible)
• Fitted with reliable IC5™ connectors (EC5™ compatible)
• Integrated fan for reduced heat during extreme running
• High quality 10awg wires
• Low voltage cut off and thermal overload protection
• User programmable punch and brake settings
• Capable of 60+ mph (97+ km/h) speeds **

BLX4074 2050KV BRUSHLESS MOTOR

• Beautifully etched aluminum can
• 4-pole construction for smooth and consistent power
• Gold bullet connectors for reliable and efficient connection
• Finned motor can for increased heat dissipation
• Super strong 5mm shaft
• Capable of 60+ mph (97+ km/h) speeds *

SPEKTRUM STX2 RADIO SYSTEM

• Complete 2.4GHz radio system including a 2Ch waterproof receiver *
• Built-in 3-position throttle limiter
• Steering & throttle rate & trim adjustments with throttle and steering reversing
• FHSS 2.4GHz protocol** offers extended range and interference free performance

ADS-15M SERVO

• Strong metal gears used throughout
• Waterproof and dustproof case *
• 25 tooth output spline
• Torque: 14kg-cm @6V
• Speed: 0.16sec/60degree @6V
• Dimensions: 40x38x20mm (Industry standard size)
